Compact Handed Coating Thickness Gauge DELTASCOPE  FMP10 Fischer
Click above image to zoom out

Compact Handed Coating Thickness Gauge DELTASCOPE FMP10 Fischer

Price: Contact   Request for quotation
Unit: Pce
Delivery time: 8-10 Tuần
Gross weight: 0 kg
Place of delivery: Warehouse of Buyer    (Delivery Policies)
Warranty: Contact    (Warranty Policies)
Order code: DELTASCOPE FMP10

Email/skype: support@industrialworld.com

Product name: Compact Handed Coating Thickness Gauge
Model: DELTASCOPE FMP10
Brand: Fischer
Measuring method: measurement of non-magnetic coatings on magnetic substrates
Applications: chrome, copper, zinc, as well as paint, varnish, enamel or plastic coatings on steel and iron
Surface: the instruments are applicable for measurements both on smooth and rough surfaces
Measurement range: varies depending on the probe in use
Include: body instrument

HANDED GAUGES FOR COATING THICKNESS MEASUREMENT

MODEL: DELTASCOPE  FMP10

BRAND: FISCHER


Features:

  • Non-destructive coating thickness measurement according to the magnetic induction and/or eddy current methods.
  • Automatic probe recognition
  • Automatic substrate material recognition (FMP20)
  • USB interface for data transfer to the PC
  • Statistical display of common characteristic values such as mean value, standard deviation, min, max, range
  • Simple adjustment to the geometry of the specimen
  • Delivery with PC software FISCHER Data Center with the following functionality: Transferring and archiving measurement data, comprehensive statistical and graphical evaluations, easy creation and printing of inspection reports

Typical fields of application:

- Paint manufacturing and processing

- Electroplating plants

- Final inspection of goods

- Anodizing plants

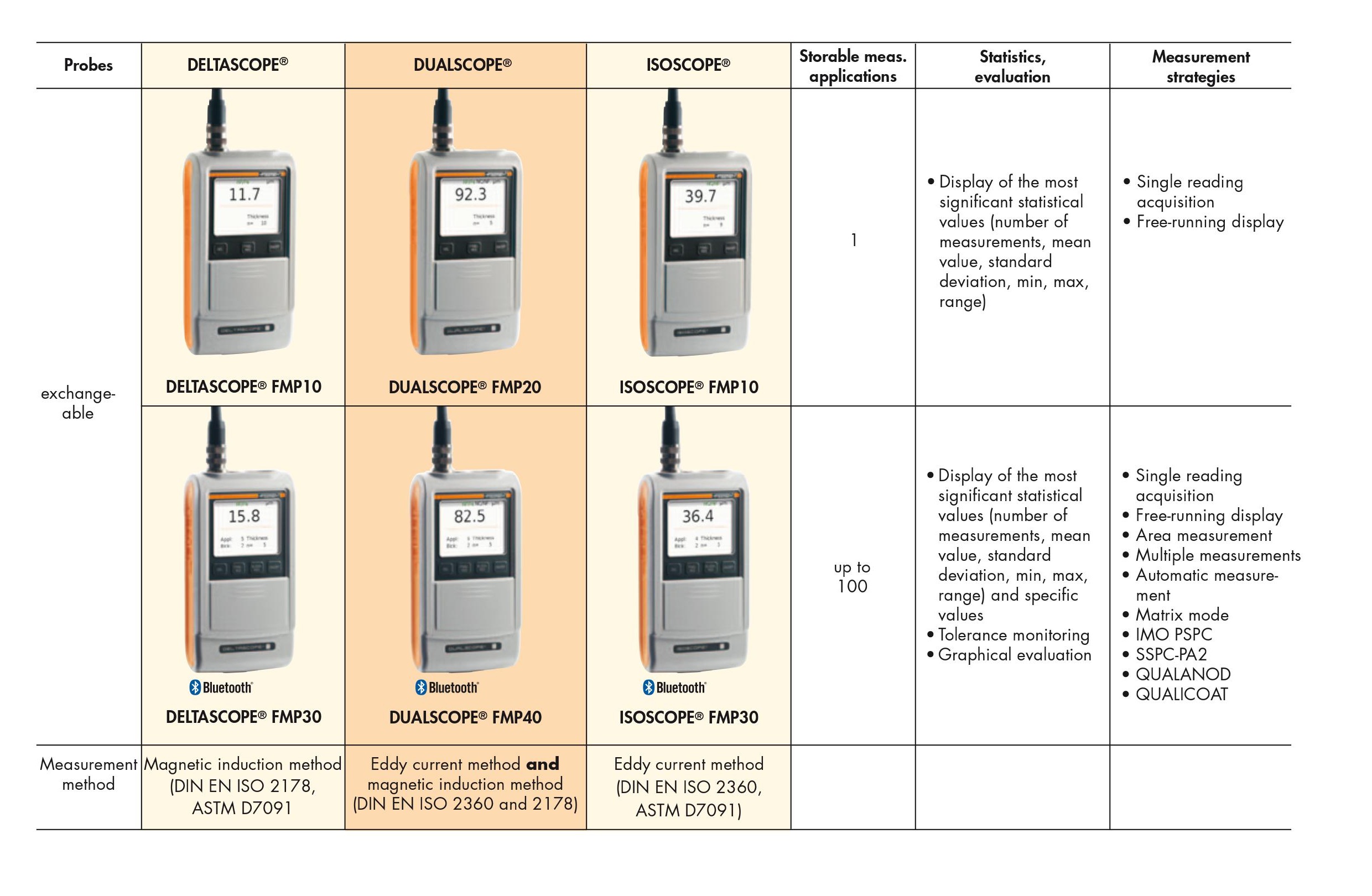

Gauge Types:

DELTASCOPE® FMP10

* For measuring non-ferromagnetic metal coatings, e.g., chrome, copper, zinc, as well as paint, varnish, enamel or plastic coatings on steel and iron. (Measurement with the magnetic-inductive method according to ISO 2178, ASTM D7091)

ISOSCOPE® FMP10

* For measuring paint, varnish or plastic coatings on non-ferromagnetic metal substrate materials, of anodic coatings on aluminum and of electrically conducting coatings on non-conducting carrier materials. (Measurement with the eddy-current method according to ISO 2360, ASTM D7091)

DUALSCOPE® FMP20

* Based on the automatic substrate material recognition and the combination of the two measurement methods

(magnetic-inductive and eddy-current according to ISO 2178, ASTM D7091 and ISO 2360), this universal instrument can be used to measure numerous coatings both on iron/steel and on non-ferromagnetic metals and non-conducting carrier materials.
